EMUFDD & YEDATA Jumpering

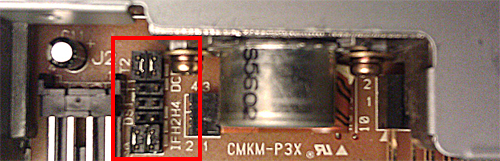

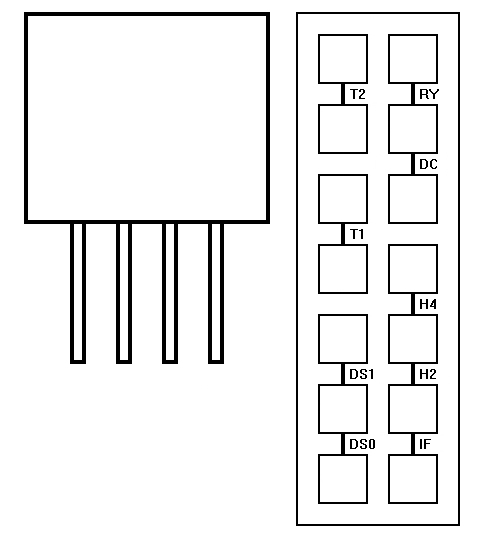

702D YEDATA drives



 IF

 Automatic Switching operating mode

 T1

 Automatic Switching operating mode

 T2

 Automatic Switching operating mode

 DC

 Disk Change output on Pin 34

 RY

 Ready output on Pin 34

 H2

 High Density output on Pin 2

 H4

 High Density output on Pin 4

 DS0

 Drive select 0

 DS1

 Drive select 1

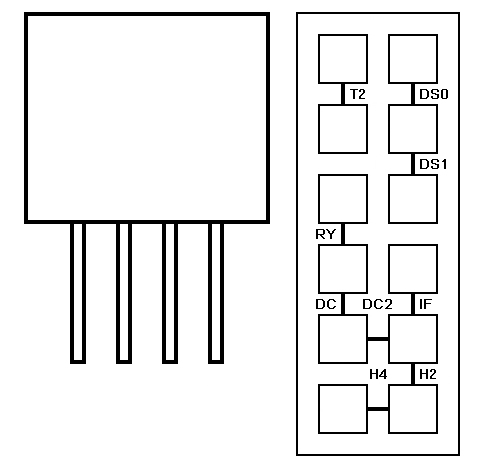

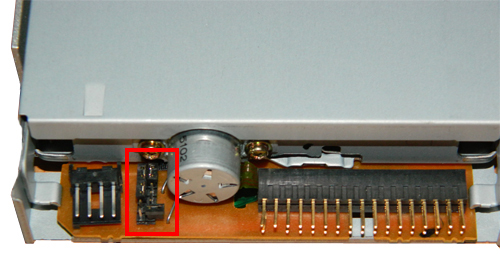

702D YEDATA drives




 IF

 Automatic Switching operating mode

 T2

 Automatic Switching operating mode

 DC

 Disk Change output on Pin 34

 DC2

 Disk Change output on Pin 02

 RY

 Ready output on Pin 34

 H2

 High Density output on Pin 2

 H4

 High Density output on Pin 4

 DS0

 Drive select 0

 DS1

 Drive select 1
