EMUFDD & TEAC Jumpering

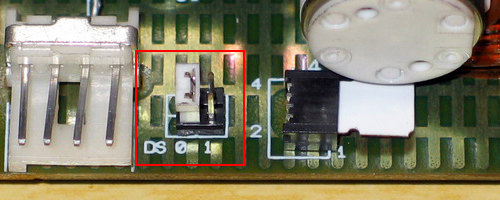

Minimal TEAC drives



 DS0

 Drive select 0

 DS1

 Drive select 1

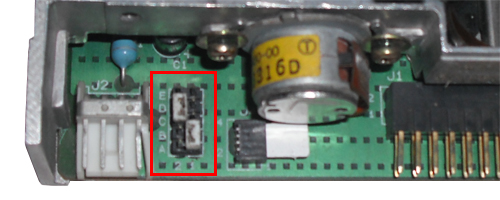

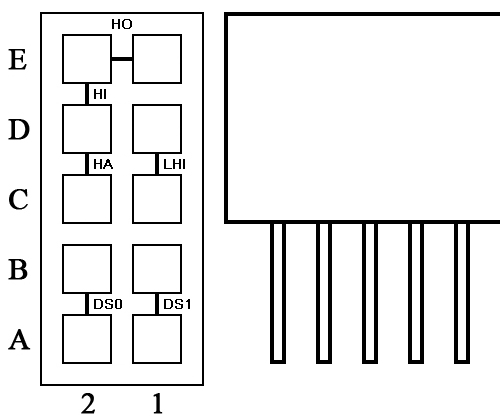

FD-235HF-4xxx TEAC drives




 A2-B2

 DS0

 Drive select 0

 A1-B1

 DS1

 Drive select 1

 C2-D2

 HA



 D2-E2

 HI



 C1-D1

 LHI

 HD IN low is high density

 E1-E2

 HO

 Density (HD OUT) output on pin 2

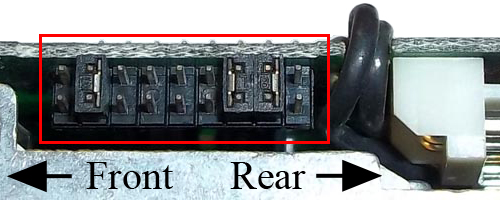

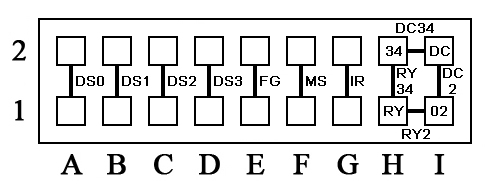

FD-135 TEAC drives




 A1-A2

 DS0

 Drive select 0

 B1-B2

 DS1

 Drive select 1

 C1-C2

 DS2

 Drive select 2

 D1-D2

 DS3

 Drive select 3

 E1-E2

 FG

 Short between FDD frame and DC 0V

 F1-F2

 MS

 Motor on when: (Drive Select OR Ready) AND Disk in

 G1-G2

 IR

 LED on when: (Drive Select AND Ready)

 H1-H2

 RY34

 Ready output on Pin 34

 H1-I1

 RY2

 Ready output on Pin 2

 H2-I2

 DC34

 Disk Change output on Pin 34

 I1-I2

 DC2

 Disk Change output on Pin 2

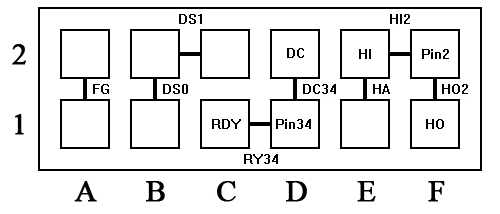

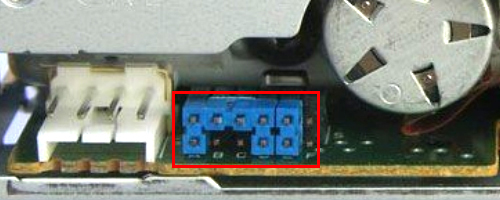

Simple TEAC drives




 A1-A2

 FG

 Short between FDD frame and DC 0V

 B1-B2

 DS0

 Drive select 0

 B2-C2

 DS1

 Drive select 1

 C1-D1

 RY34

 Ready output on Pin 34

 D1-D2

 DC34

 Disk Change output on Pin 34

 E1-E2

 HA

 Density set automatically

 E2-F2

 HI2

 Density set by HD IN on pin 2

 F1-F2

 HO2

 Density (HD OUT) output on pin 2

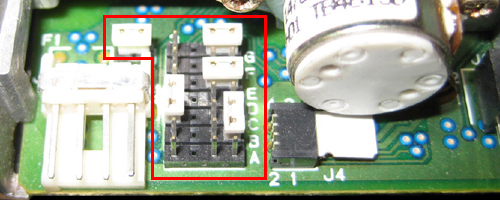

Medium TEAC drives




 FG

 FG

 Short between FDD frame and DC 0V

 A1-B1

 DS0

 Drive select 0

 B1-C1

 DS1

 Drive select 1

 A2-B2

 DS2

 Drive select 2

 B2-C2

 DS3

 Drive select 3

 C3-D3

 REN

 Disable auto-recalibration

 D3-E3

 ACD(a)

 Disable auto-checking

 E3-F3

 ACD(b)

 Disable auto-checking

 D2-E2

 RY34

 Ready output on Pin 34

 E1-E2

 DC34

 Disk Change output on Pin 34

 E1-F1

 DC2

 Disk Change output on Pin 2

 G1-G2

 HA

 Density set automatically

 F1-G1

 HI2

 Density set by HD IN on pin 2

 F1-F2

 HO2

 Density (HD OUT) output on pin 2

 F3-G3

 IR

 LED on when: (Drive Select AND Ready)

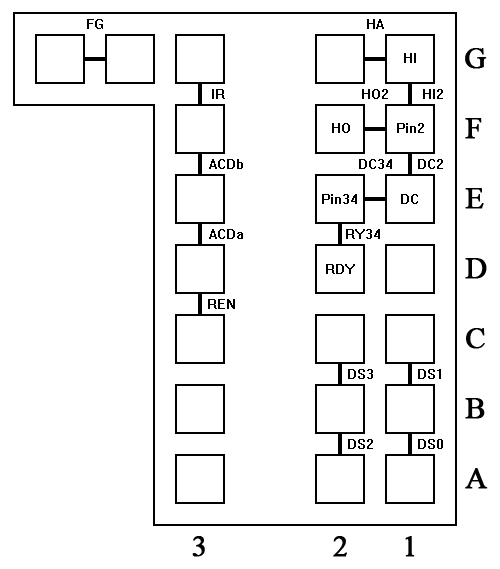

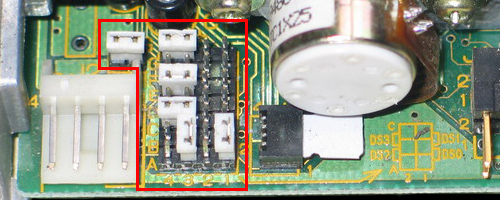

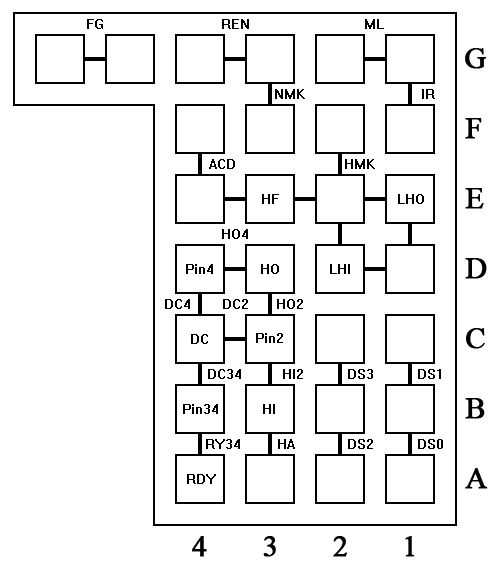

Advanced TEAC drives



 FG

 FG

 Short between FDD frame and DC 0V

 A1-B1

 DS0

 Drive select 0

 B1-C1

 DS1

 Drive select 1

 A2-B2

 DS2

 Drive select 2

 B2-C2

 DS3

 Drive select 3

 A4-B4

 RY34

 Ready output on Pin 34

 B4-C4

 DC34

 Disk Change output on Pin 34

 C3-C4

 DC2

 Disk Change output on Pin 2

 C4-D4

 DC4

 Disk Change output on Pin 4

 A3-B3

 HA

 Density set automatically

 B3-C3

 HI2

 Density set by HD IN on pin 2

 C3-D3

 HO2

 Density (HD OUT) output on pin 2

 D3-D4

 HO4

 Density (HD OUT) output on pin 4

 D1-D2

 LHI

 ---or---

 D2-E2

 LHI

 HD IN low is high density

 D1-E1

 LHO

 ---or---

 E1-E2

 LHO

 HD IN high is high density

 E2-F2

 HMK

 Half mask for INDEX/READ-DATA

 F3-G3

 NMK

 No mask for INDEX/READ-DATA

 F1-G1

 IR

 LED on when: (Drive Select AND Ready)

 G1-G2

 ML

 Motor on when: (Motor ON AND LED on)

 E4-F4

 ACD

 Disable auto-checking

 G3-G4

 REN

 Disable auto-recalibration

 E2-E3

 HF

 ---or---

 E3-E4

 HF

 Must always be in for this version of drive
